Precast Boundary wall
Turnkey Perimeters
A standardized boundary wall system that meets the structural demands of both industrial and infrastructure projects. Engineered for sheer durability, speed, and ease of installation.
Technical Specs & Variations
- Wind Load = 1.0 kN/m²
- Soil Bearing Capacity = 120 kN/m²
- Concrete Strength = 40N/mm² (60N/mm² for Hollow Core Slabs)
- Wind Load = 1.0 kN/m²
- Soil Bearing Capacity = 120 kN/m²
- Concrete Strength = 40N/mm² (60N/mm² for Hollow Core Slabs)

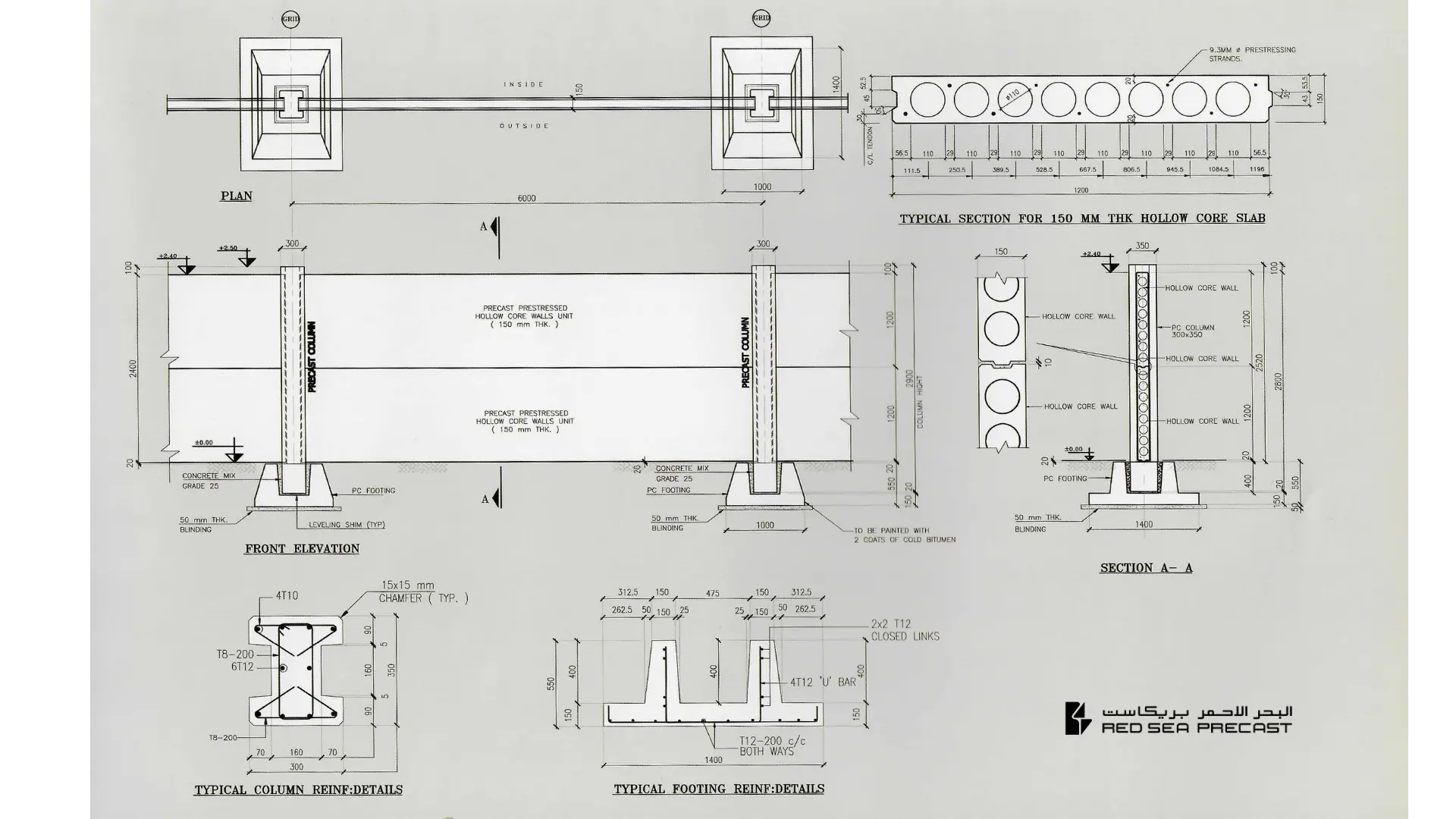

Hollow Core Supported Wall System
Designed with eccentric pocket foundations and vertical columns, this system provides a recess for placing Hollow Core slabs or Precast Solid walls. Columns offer moment-stiff connections for enhanced stability. Ideal for industrial zones prioritizing structural rigidity.

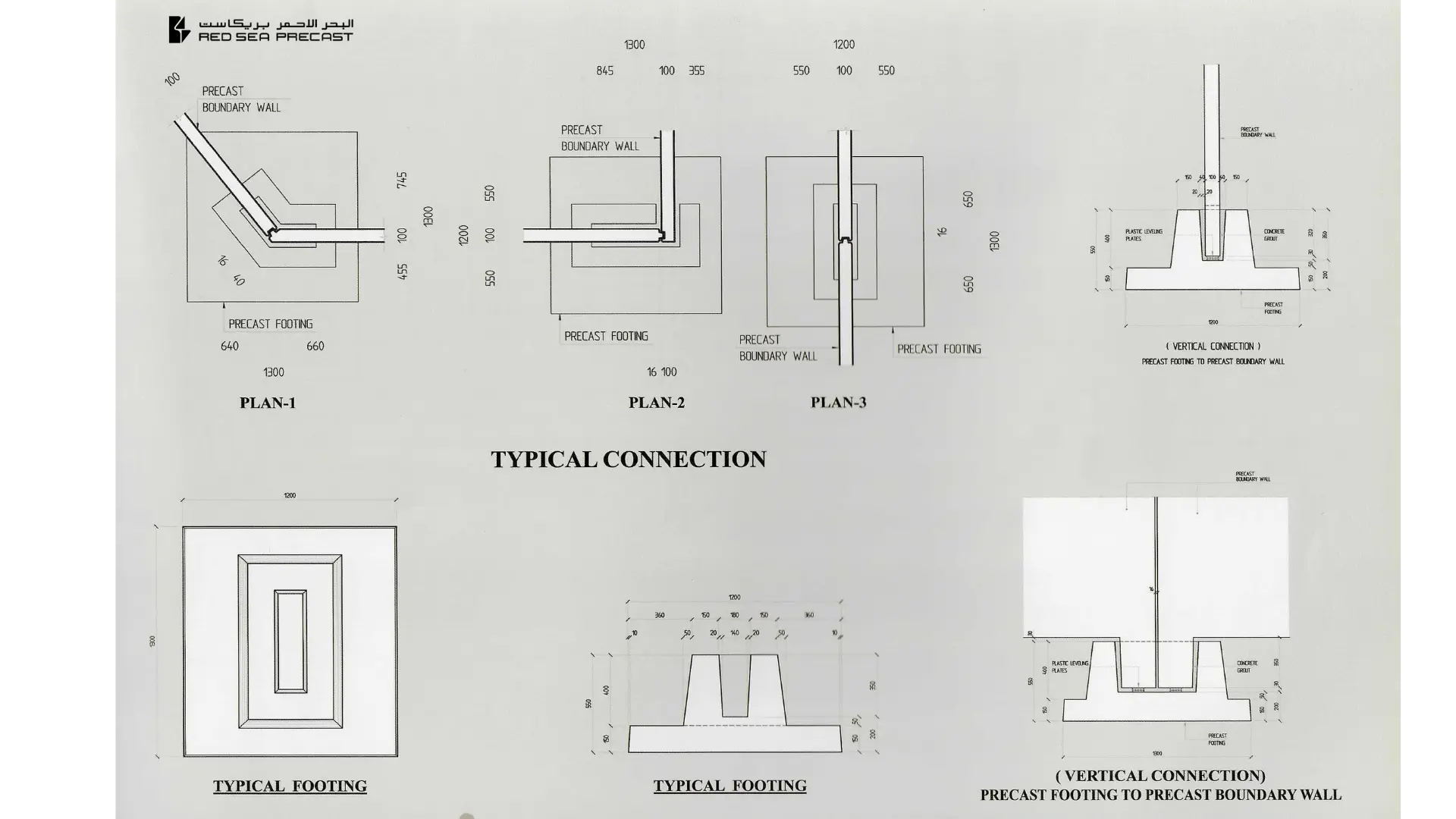

Solid Wall with Plot Line Optimization
Constructed with eccentric foundations and solid walls joined through a shear key, this system allows walls to align exactly with the plot boundary—maximizing internal space. Outer surfaces can be customized.

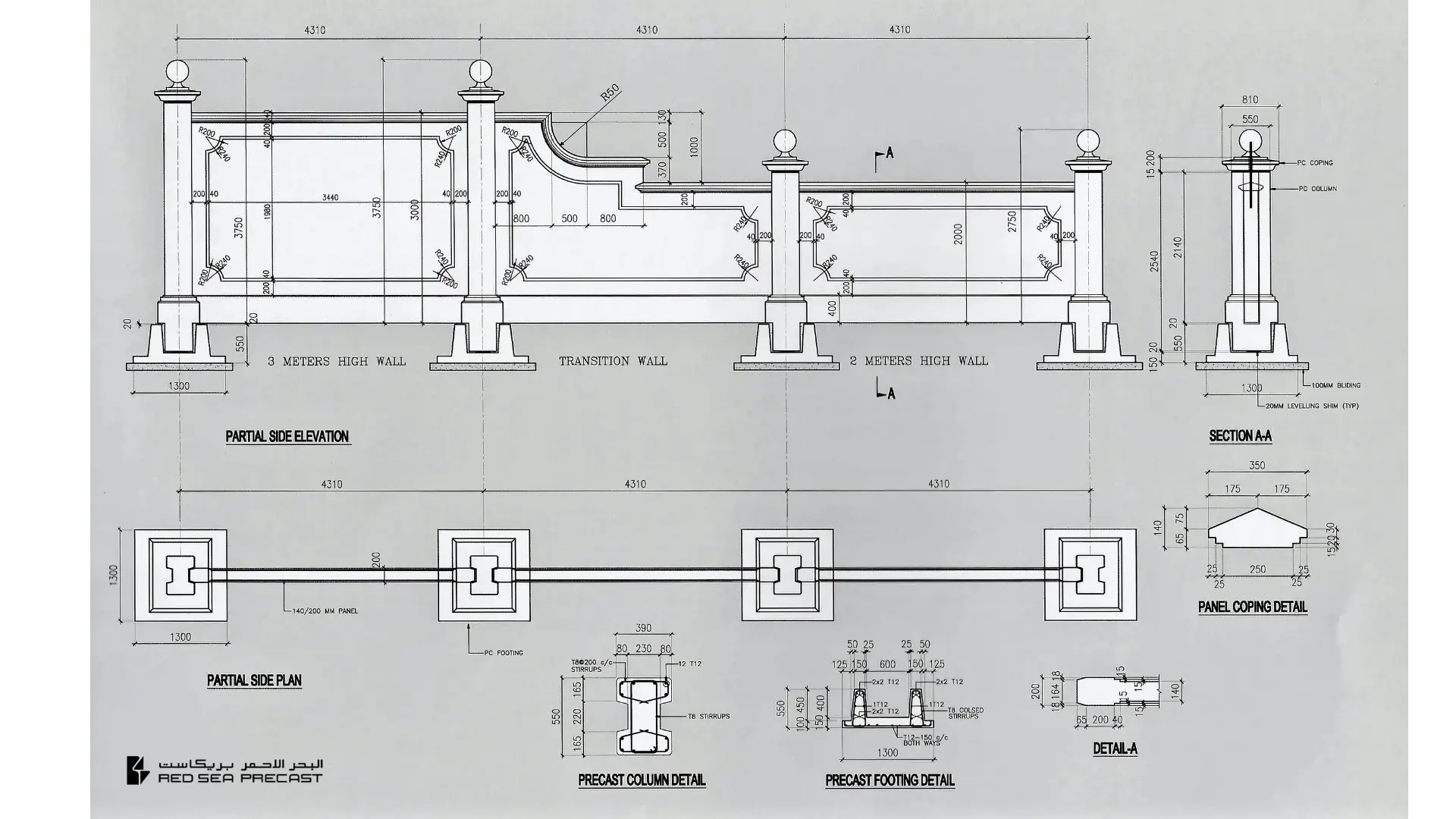

Solid Wall with Setback Column Design
Similar to Type 01 but replaces Hollow Core with solid panels. Columns are positioned 150mm within the plot line, allowing varied panel designs and finishes. Ideal for developments requiring architectural flexibility.

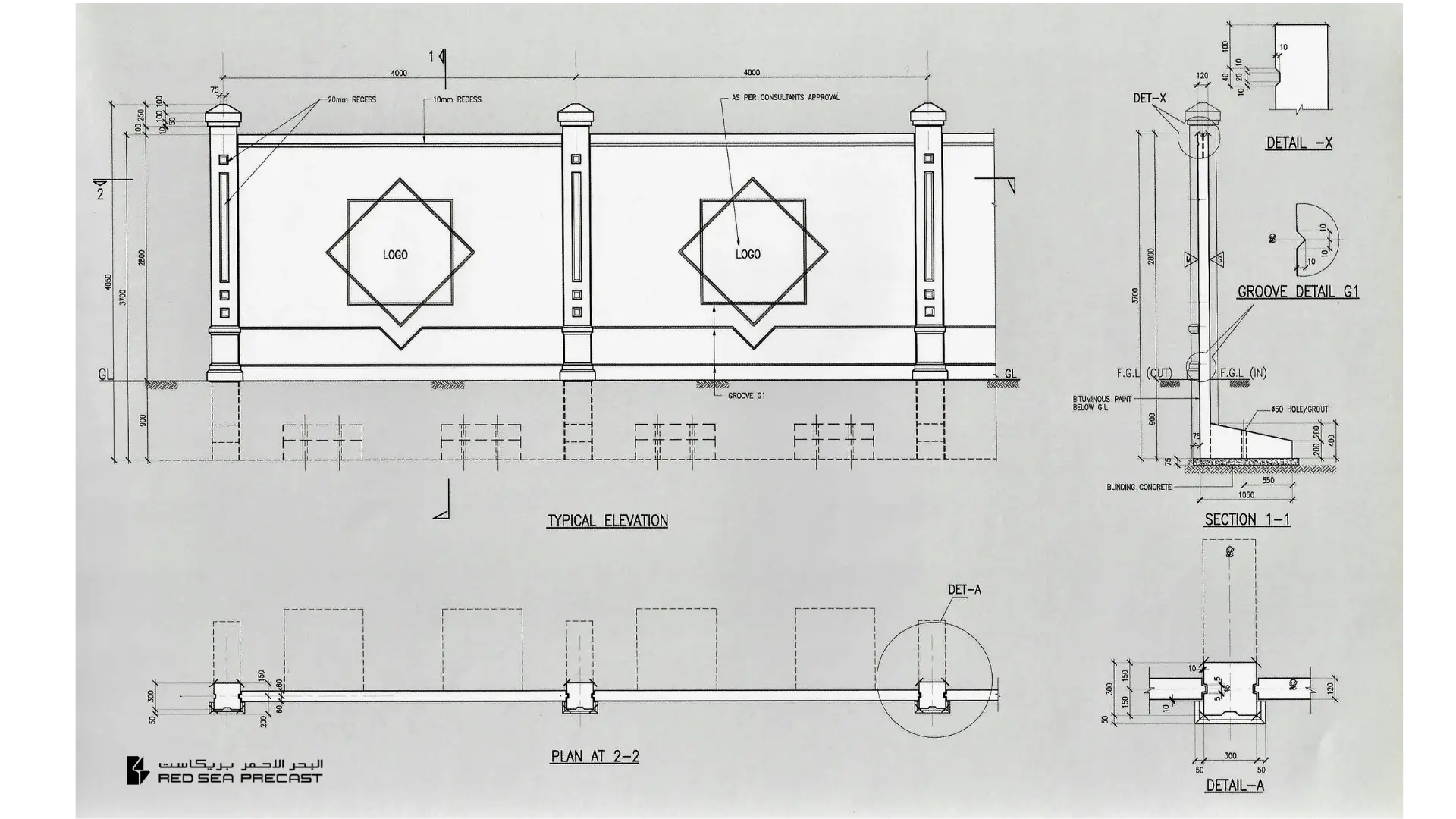

Panel-Only System with Architectural Flexibility
This column-free setup uses male-female panel connections to reduce cost and erection time. Architectural designs like grooves, logos, or even GRC attachments can be added to elevate aesthetic appeal. Best for cost-conscious builds requiring fast turnaround.
Surface Finishing Options
Grey Fairfaced (for paint applications)
Acid Washed (for textured aesthetic)
Polished & Retarded (for exposed aggregates)
Sandblasted, Bush-Hammered, Tooled, or Grooved
Custom architectural finishes available per request
Frequently Asked Questions
What are the main benefits of using Precast Boundary Walls?
Faster installation and lower labor costs
Custom finishes and surface textures
High durability and low maintenance
Space-efficient designs to maximize plot area
Engineered to meet structural and aesthetic requirements
What are Precast Boundary Walls made of?
Precast boundary walls are made from high-strength reinforced concrete with a minimum characteristic cube strength of Fcu = 40 N/mm². They include OPC cement, water-reducing admixtures, and steel reinforcements complying with BS standards. The concrete mix may also include microsilica (for foundations only) and aggregates complying with BS 852 and BS 882.
What types of surfaces are available?
Surfaces can be fairfaced or exposed aggregate, with the following finish options:
Acid Etched
Foemliner
Hammer Ribs
Polished
Retarded
Sandblasted
Stand Embedded
Tooled or Bush Hammered
Panels can also feature multiple surface treatments separated by grooves.
What heights and modules are offered?
Standard wall heights:
2.2 m or 2.7 m above ground level (custom heights available upon request)
Wall modules are designed in 6 m segments.
How is durability ensured below ground level?
All boundary wall surfaces that extend below ground are treated with 2 layers of bitumen paint for moisture and chemical resistance.
Can architectural features like logos or patterns be added?
Yes. Walls can include architectural insets such as logos or patterns. Optional GRC panels can also be added upon request for enhanced surface detailing.
